UltraCrete M60 Bedding Mortar

Pre-blended rapid strength bedding mortar: simply add clean water. Ideal for bedding covers and general repairs.

• Pack Size: 25 kg paper sack or bucket

• Colour: Brown Grey

• Yield: Approximately 12.5 litres from a 25 kg pack

--



UltraCrete M60 Rapid Strength Bedding Mortar

UltraCrete M60 Bedding Mortar is a rapid strength bedding mortar for use with all access covers, as well as for the rapid bonding of granite setts and flags, emergency repairs and bedding of kerbs.

• Pack Size: 25 kg paper sack or bucket

• Colour: Brown Grey

• Yield: Approximately 12.5 litres from a 25 kg pack

For bulk orders please contact us on 01933 426225 for the best deals available. Large local stock at multiple U.K. branches, with collection by appointment welcomed. To locate your nearest branch please click here.



Product Description

UltraCrete M60 is the market leading rapid strength mortar, pre-blended simply requiring the addition of clean water. Ideal for bedding covers and general repairs. Rapid strength gain, accepting traffic in as little as 60 minutes. It achieves exceptional bond strength without the use of a primer. HAPAS approved since 2005, M60 also conforms to HD27/04 and has a rapid strength gain.



Product Advantages

• Conforms to HD27/04

• HAPAS approved since 2005

• Open to traffic: 60 minutes even at 5°C

• Workability: 5 - 10 minutes

• 10 mm - 75 mm in one pass, greater depths are possible layer on layer

• 24 N/mm² compressive strength in 1 hour

• Shrinkage compensated

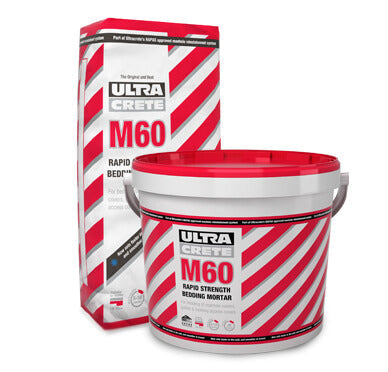

• Available in either paper sack or plastic bucket



Technical Details

M60 is supplied pre-blended in 25 kg bags or plastic containers and requires only the addition of water. The product can be used from 10 mm-75 mm in one pass, with greater depths possible using the layer-upon layer method. M60 achieves exceptional bond strength without the use of a primer. The product can be bulked out with the addition of up to 30% hard stone clean aggregate. Please note that this will reduce the product’s strength gain and alter its performance characteristics.



Brochure

To download the UltraScape Complaint Paving System brochure please ULTRACRETE M60 BEDDING MORTAR click here.



Preparation

• All surfaces should be free from oil, grease, dust or any other visible contaminants

• Remove all loose particles and work on a sound substrate

• Pre-soak the area with clean water prior to application to aid bond

• Remove ponded water before applying the product



Mixing

• M60 can be mixed with a forced action mixer or by hand with an appropriate tool

• If hand mixing is used, ensure that it is vigorous

• 25 kg of product will require approximately 3 litres of water

• A stiff consistent mix with no slump should be achieved, ensuring all particles are well wetted

Note: Mix only enough material to apply within 4 minutes. Never remix or add extra water.



Placing

• Apply the bedding material over a pre-soaked area

• Once mixed, M60 should be applied to the supporting structure within 4 minutes

• Firm well into position using a float and allowing a 5 mm excess thickness

• Place the frame onto the bedding mortar ensuring it is fully supported. Check that the frame does not overhang the mortar at any point (use suitable lifting equipment when positioning the frame)

• Care must be taken to prevent voids in the bedding material under the frame, especially in the cover seating area

• The frame should then be tamped into place ensuring the correct level is obtained

• Any holes within the frame should be infilled and the flanges of the frame enveloped by a minimum thickness of 10 mm of the bedding material

• Exposed surfaces of the bedding material should be float finished, ensuring voids are filled

• Remove loose materials and point the inside surface to a smooth finish

• Once the bedding material has reached its initial set, the backfill material UltraCrete QC10 concrete can be placed



Cleaning

M60 should be removed from tools and equipment with clean water immediately after use. Cured material can also be removed mechanically.



Safety

• Please ensure that appropriate PPE is used when preparing, mixing and applying products

• Always wash hands before consuming food and make sure that materials are kept safely out of reach of children and animals

• Please dispose of packaging and waste responsibly and in accordance with local authority requirements

• A full material safety data sheet relating to this product is available - please contact us to request a copy



Contact Us

For further advice regarding the use of this product, technical support or a quotation please contact us.
